Midea pre-filter TGBW2
- Product Code: QTBW20S
- Brand: Midea
- Viewed: 1411
- Availability: In Stock
AED1,449.00
Working pressure: 0.1~1.0MPa
Rated total net water: 6700m3
Filtration accuracy: 40μm
Water purification flow: measured 6.2T/h
Filter type: 316 stainless steel
Inlet water temperature: 4~38℃
Inlet and outlet interface specifications: PPR hot melt pipe
Inlet water quality: standard municipal tap water
Flushing control mode: backwash
Product characteristics
- According to the water quality, the sewage flushing cycle is customized, intelligent flushing, eliminating the trouble of hand washing, and can also start the flushing with a key, keep the water clean and avoid the blockage of the filter screen

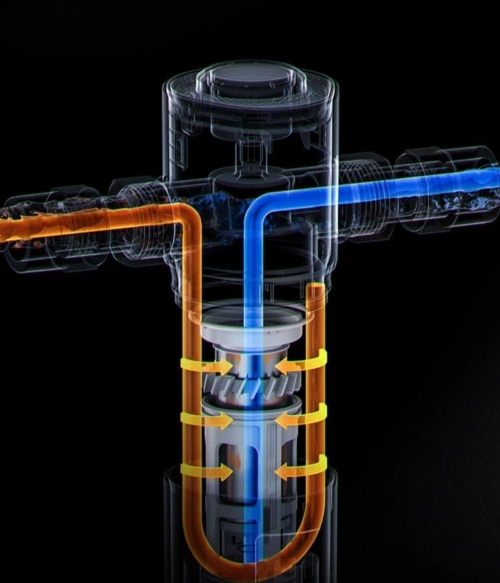

- Deep cleaning does not harm the filter, rotary scraping 360° all-round electric self-cleaning, one rotary two scraping three washing, care for the filter while deep cleaning filter element, to avoid secondary pollution
- Full of more than 8T/H surging water, water production speed, easily meet the water needs of the whole family
- Effective filtration of rust, sediment, large particles and other impurities, the retention rate of up to 93.5%, 40um accuracy to ensure the filtration effect, but also to prevent the filter screen blockage

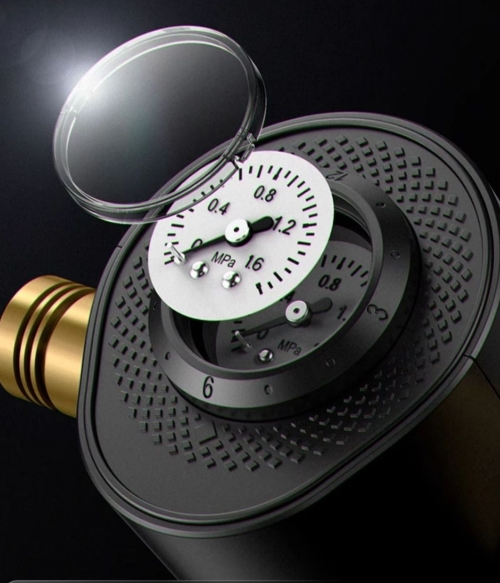

- Overhead pressure gauge to detect current water pressure in real time
- Safe and environmentally friendly material selection (H62 copper and 316L stainless steel), long-term protection, durable and reliable
Note:
- The net water of the fuselage is 4.5m3/h, and the actual detection flux can reach 8m3/h
- The fuselage 4.5T is representative of the water batch file is 4.5T, 8T is the actual test can achieve the flow rate.
